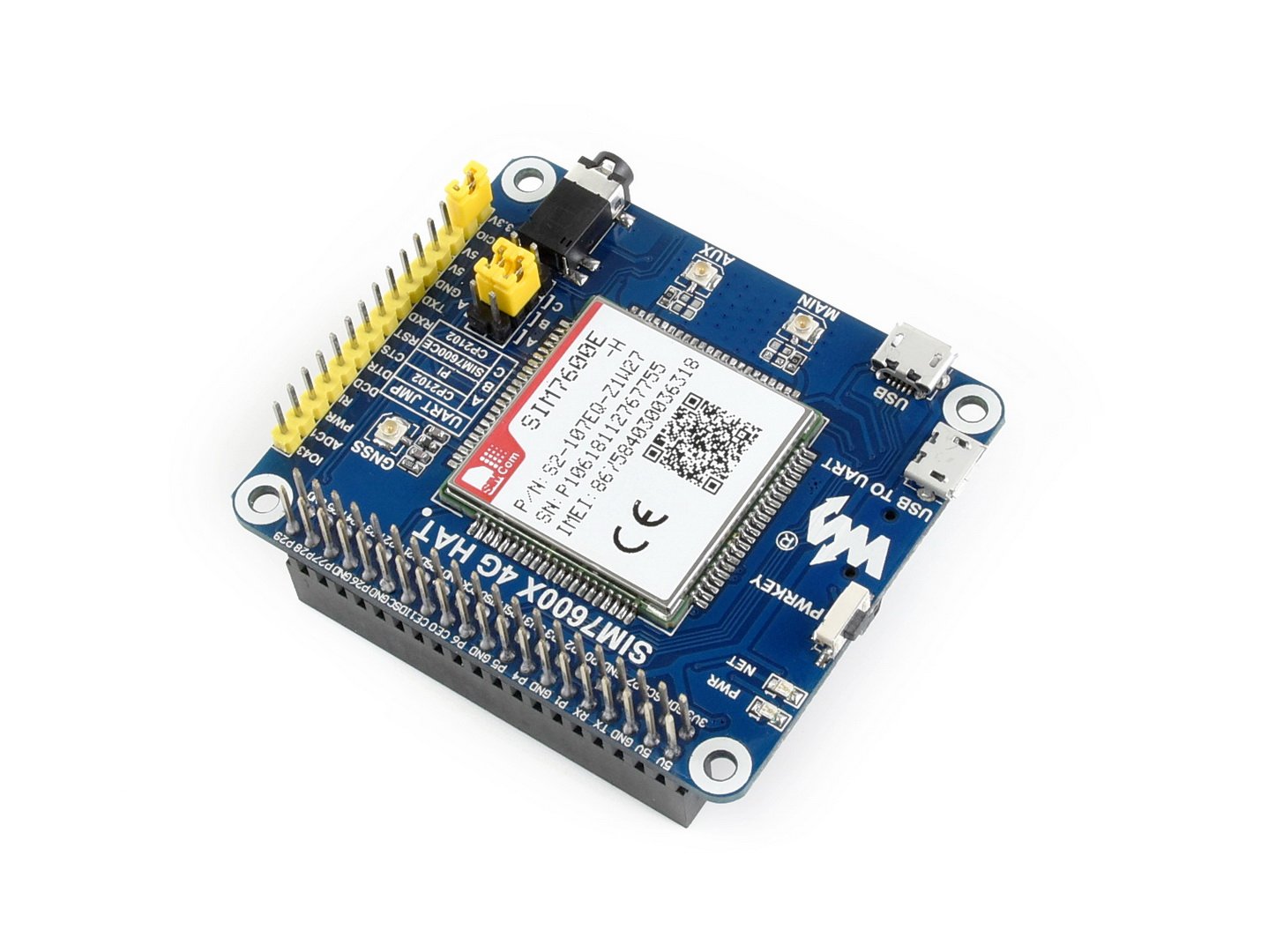

4G/3G/2G/GSM/GPRS/GNSS Hat Based SIM7600E-H for Raspberry Pi/Jetson Nano Support LTE CAT4 for Downlink Data Transfer/4G High-Speed Connection/Telephone Call/Sending SMS

Marchio: Waveshare
Modello CPU: ARMv7
Velocità CPU: 10 MHz
Tecnologia di connettività: GPIO, USB
Sistema operativo: Raspberry Pi OS

- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
- Supports dial-up, telephone call, SMS, MMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc; Supports GPS, BeiDou, Glonass, LBS base station positioning; Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT

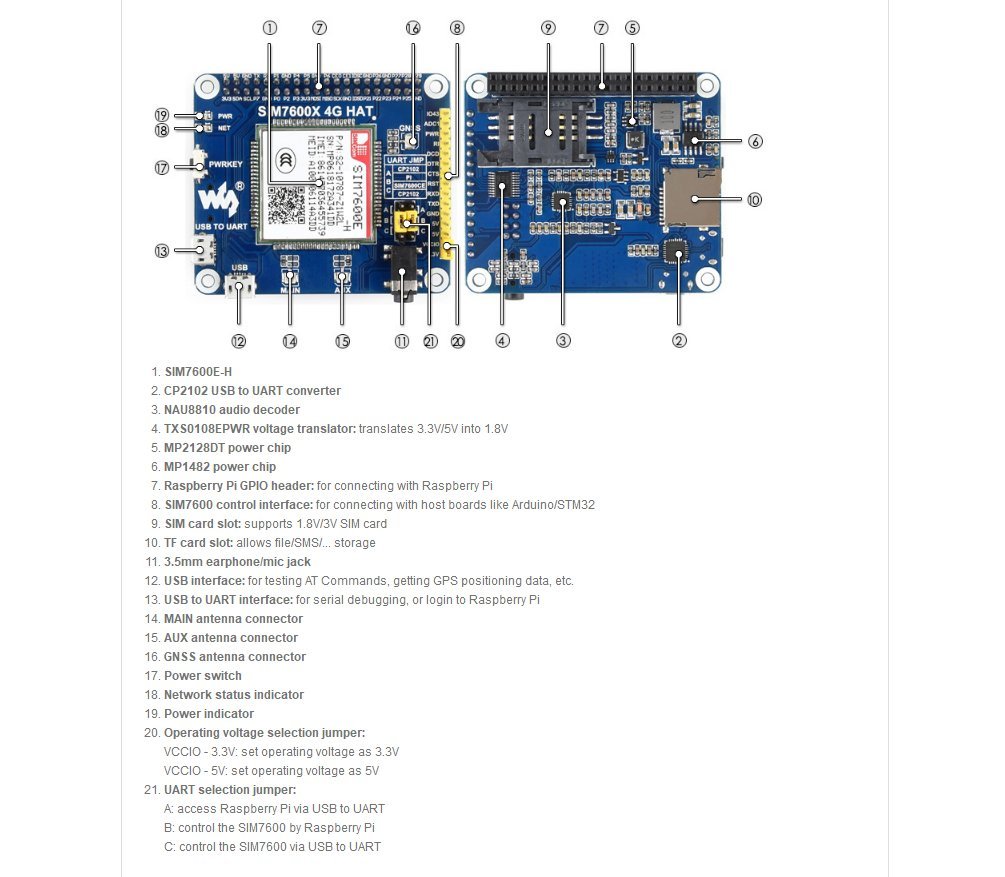

- Onboard USB interface, to test AT Commands, get GPS positioning data, and so on; Onboard CP2102 USB to UART converter, for serial debugging; Breakout UART control pins, to connect with host boards like Arduino/STM32
- Onboard audio jack and audio decoder for making telephone call;Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper;Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32), development resources: www.waveshare.com/wiki/SIM7600E_4G_HAT
