Waveshare 2-Channel Isolated CAN Expansion HAT for Raspberry Pi with MCP2515 + SN65HVD230 Dual Chips Solution and Multi Onboard Protection Circuits

Marchio: Waveshare
Nome modello: Waveshare 2-Ch Isolated CAN Expansion HAT for Raspberry Pi, Dual Chips Solution
Modello CPU: ARM 7100
Tecnologia di connettività: CAN, SPI

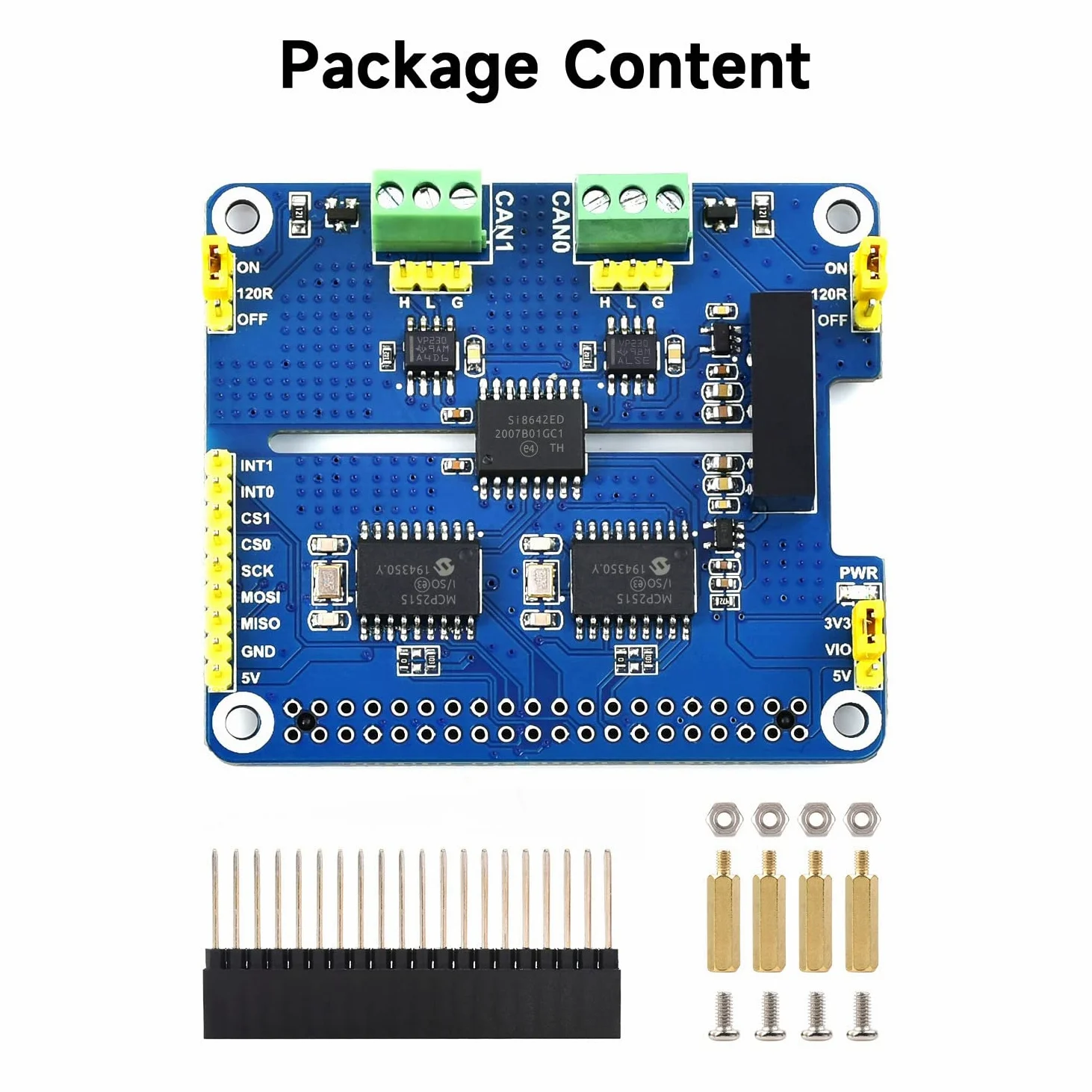

Componenti inclusi: 2-CH CAN HAT, Standoffs Pack (2pcs)

- 2-Channel CAN HAT For Raspberry Pi： 2-Channel Isolated CAN Bus Expansion, Multi Onboard Protection Circuits

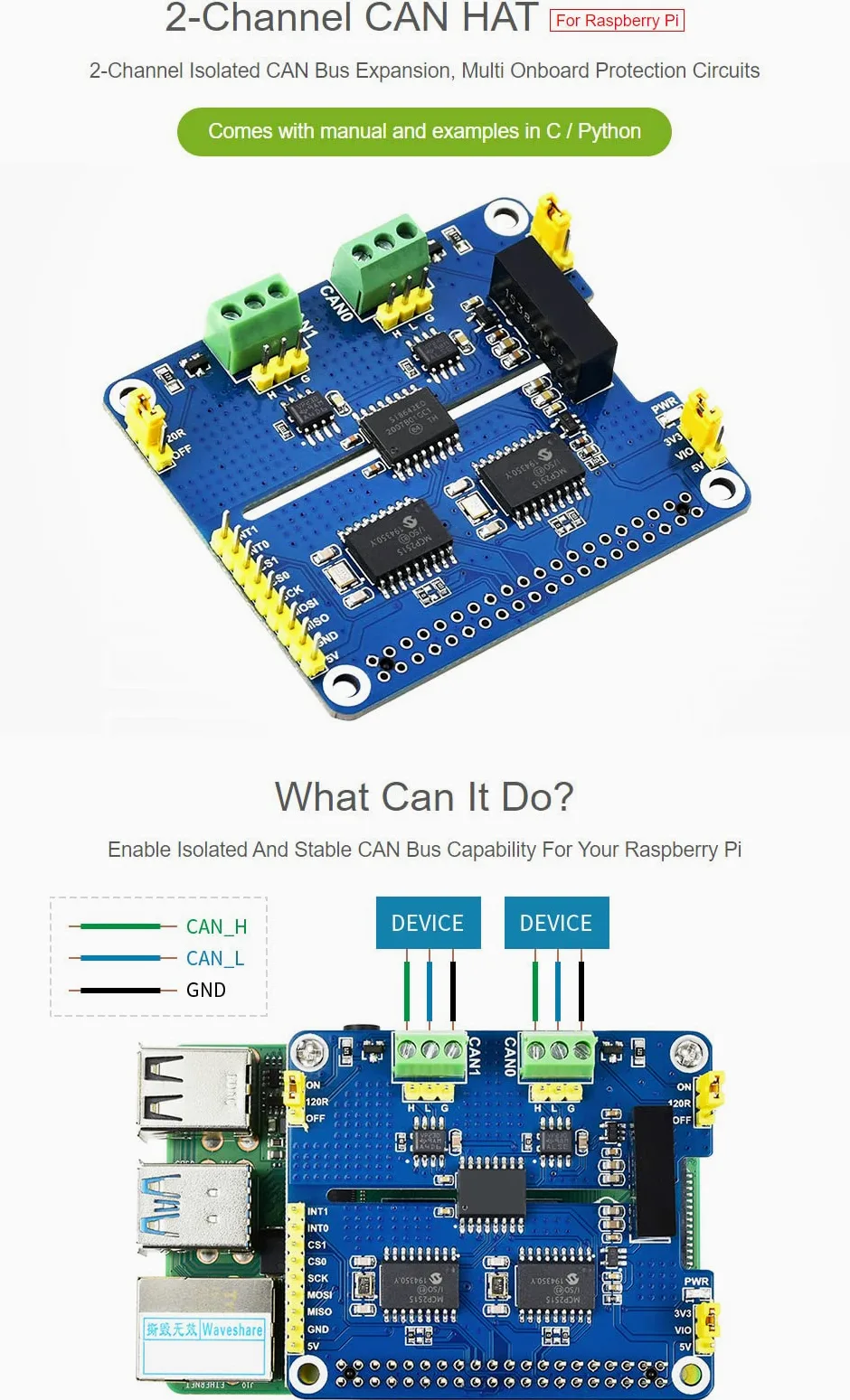

- What Can It Do?：Enable Isolated And Stable CAN Bus Capability For Your Raspberry Pi

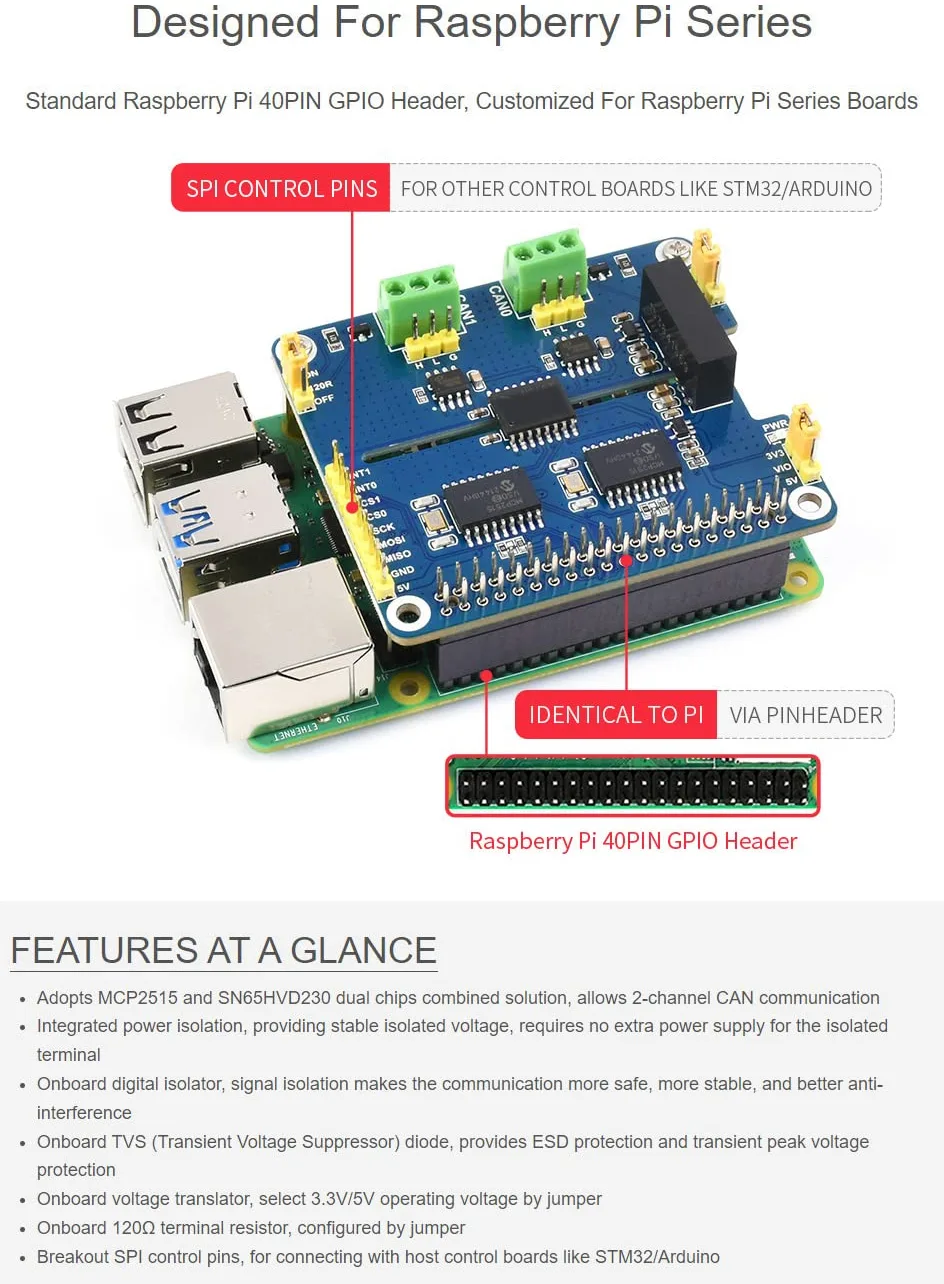

- Designed For Raspberry Pi Series：Standard Raspberry Pi 40PIN GPIO Header, Customized For Raspberry Pi Series Boards

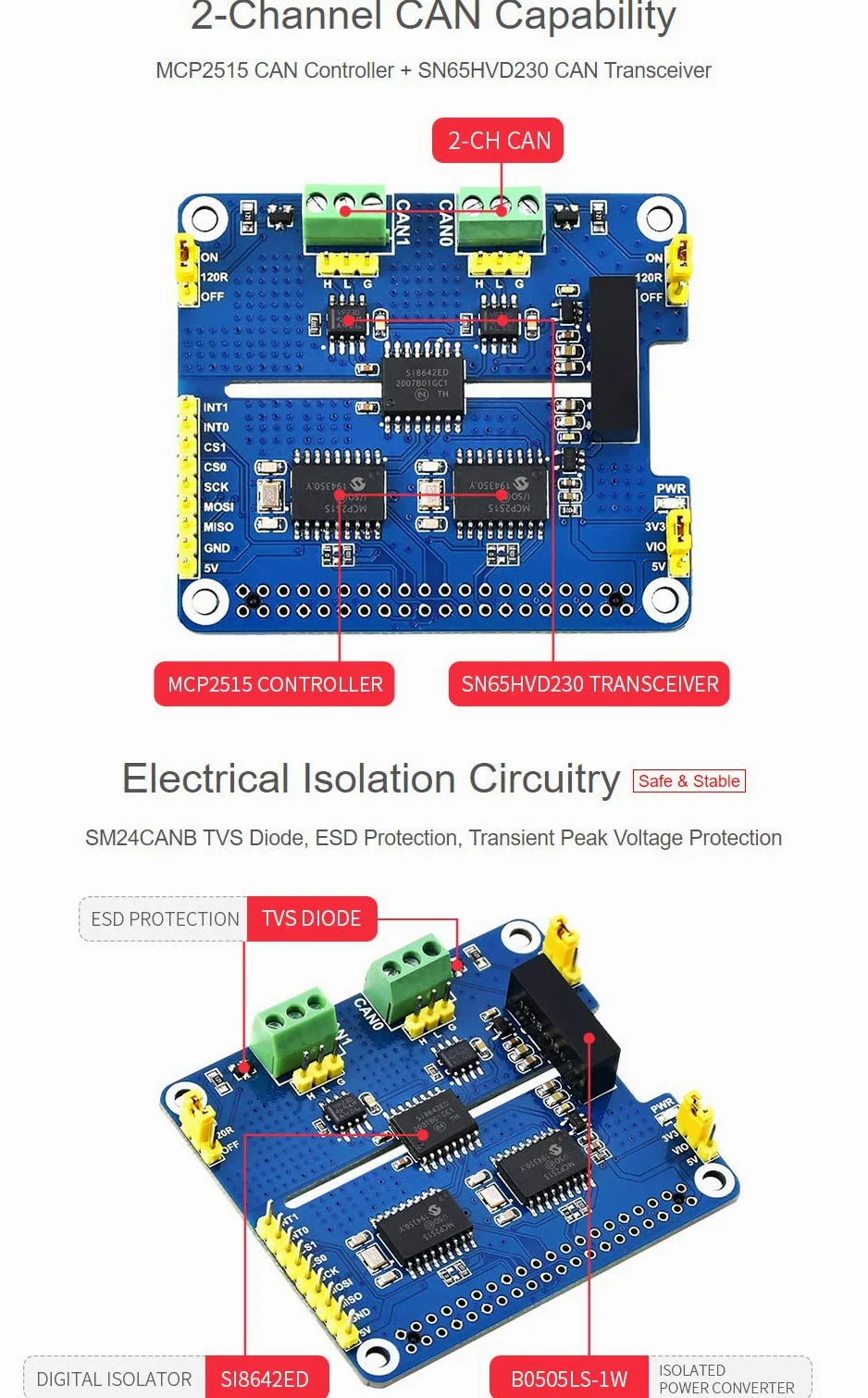

- 2-Channel CAN Capability：MCP2515 CAN Controller + SN65HVD230 CAN Transceiver; Electrical Isolation Circuitry Safe & Stable: SM24CANB TVS Diode, ESD Protection, Transient Peak Voltage Protection

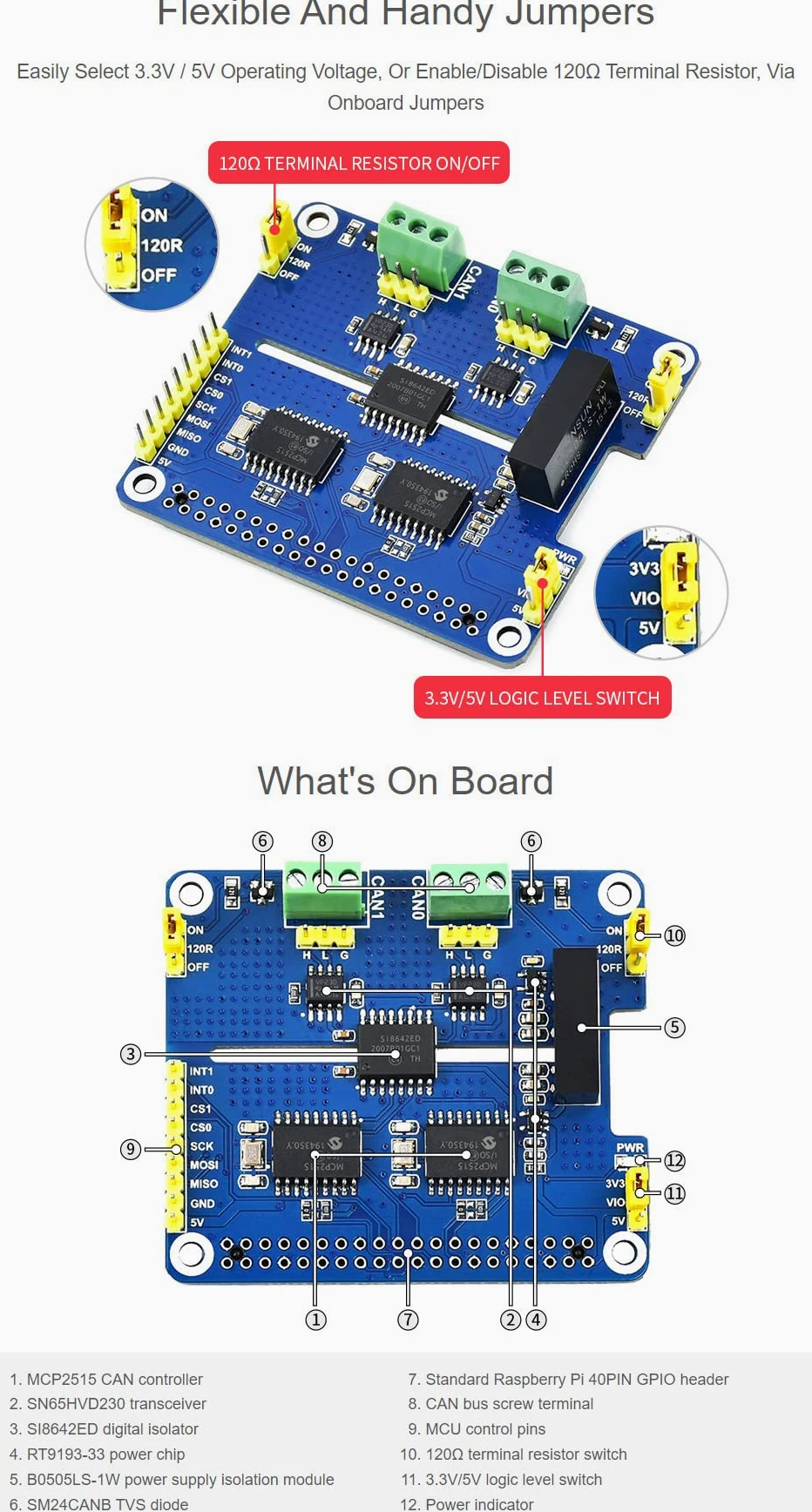

- Flexible And Handy Jumpers: Easily Select 3.3V / 5V Operating Voltage, Or Enable/Disable 120Ω Terminal Resistor, Via Onboard Jumpers
