Waveshare ESP32-S3 4.2inch RLCD Development Board, 300 x 400 Resolution, Supports Wi-Fi & BLE Dual-Mode Communication And AI Voice Interaction, without Batt

Marchio: Waveshare
Nome modello: ESP32-S3 4.2inch RLCD Development Board
Tecnologia di connettività: Bluetooth, Wi-Fi

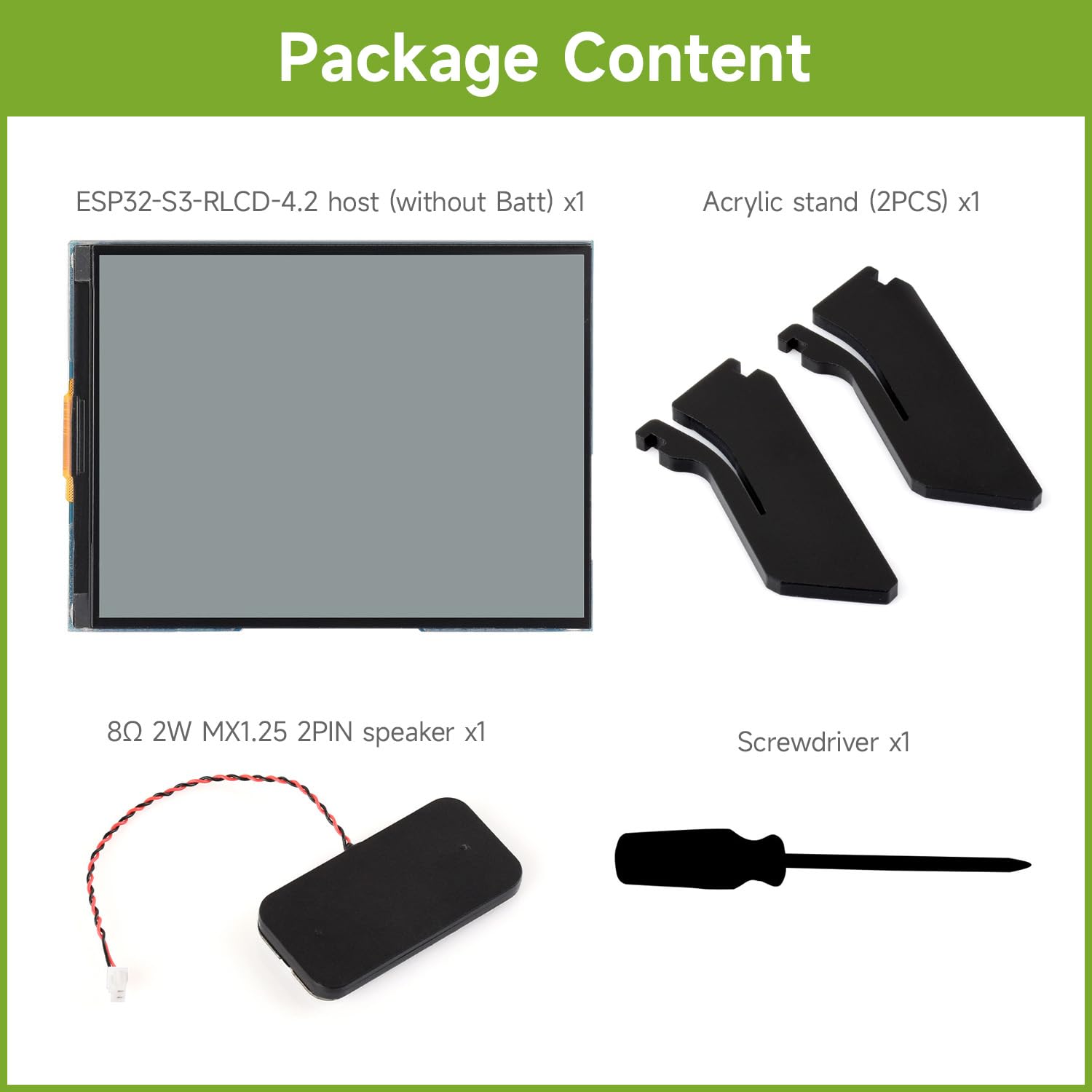

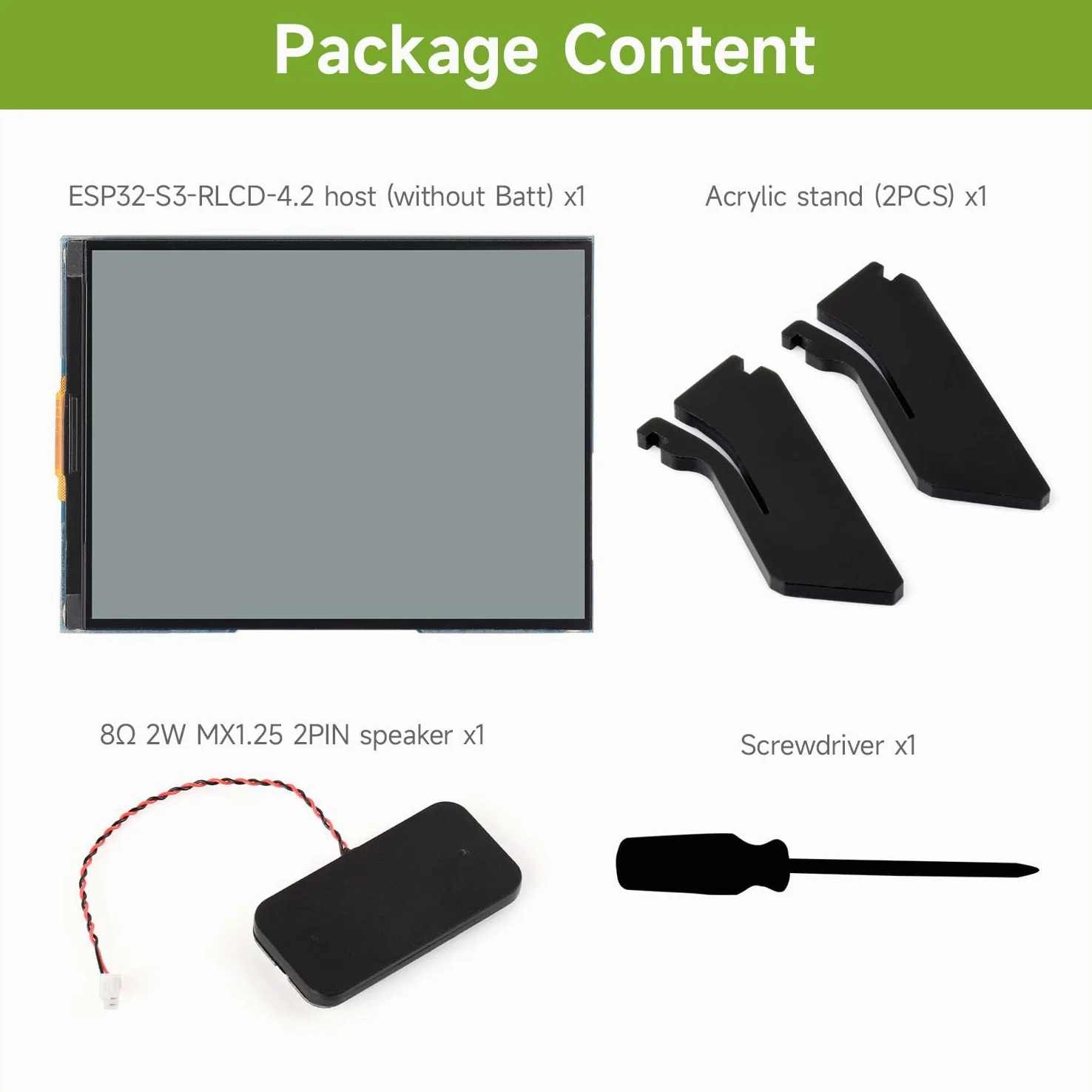

Componenti inclusi: ESP32-S3-RLCD-4.2-IT
Totale porte USB: 1

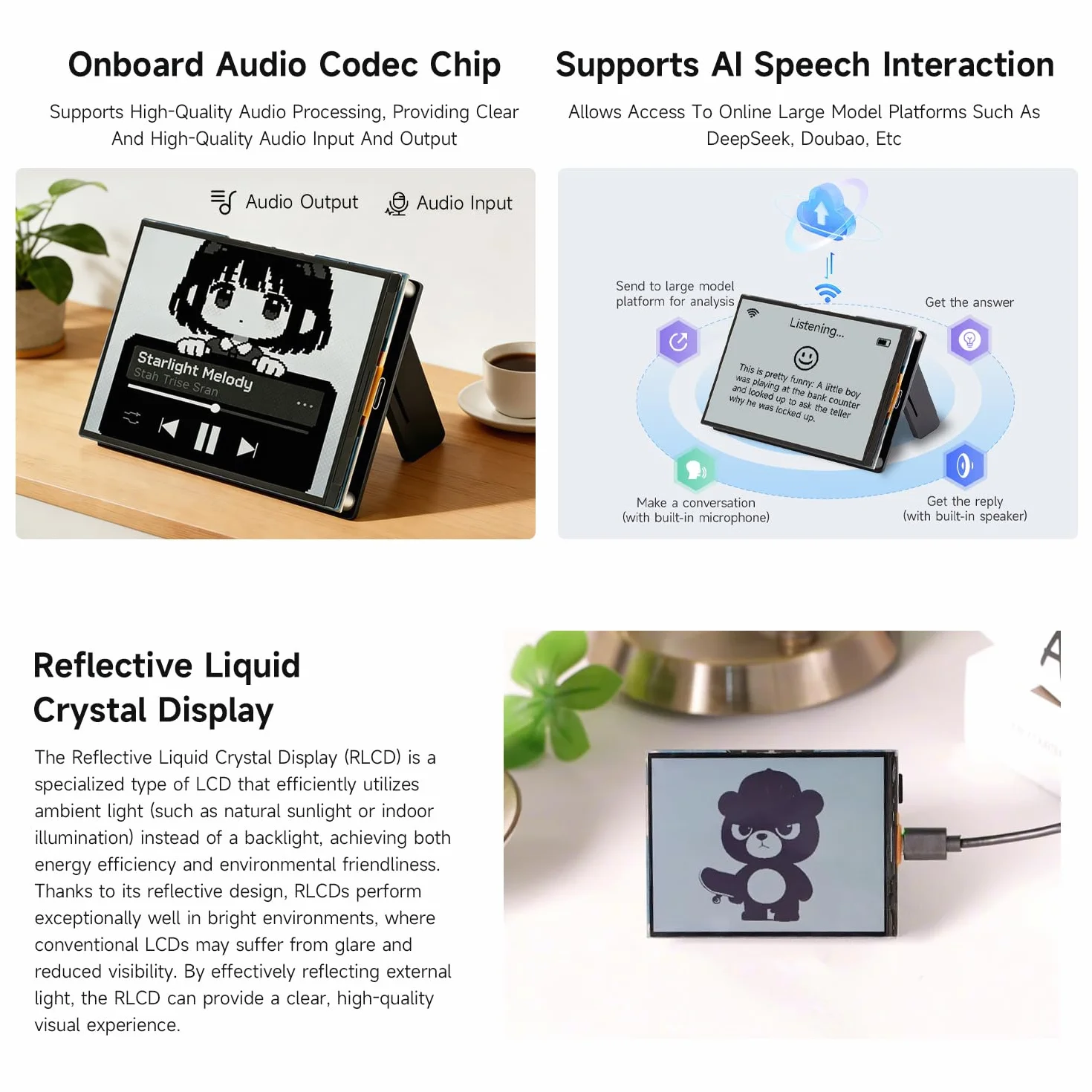

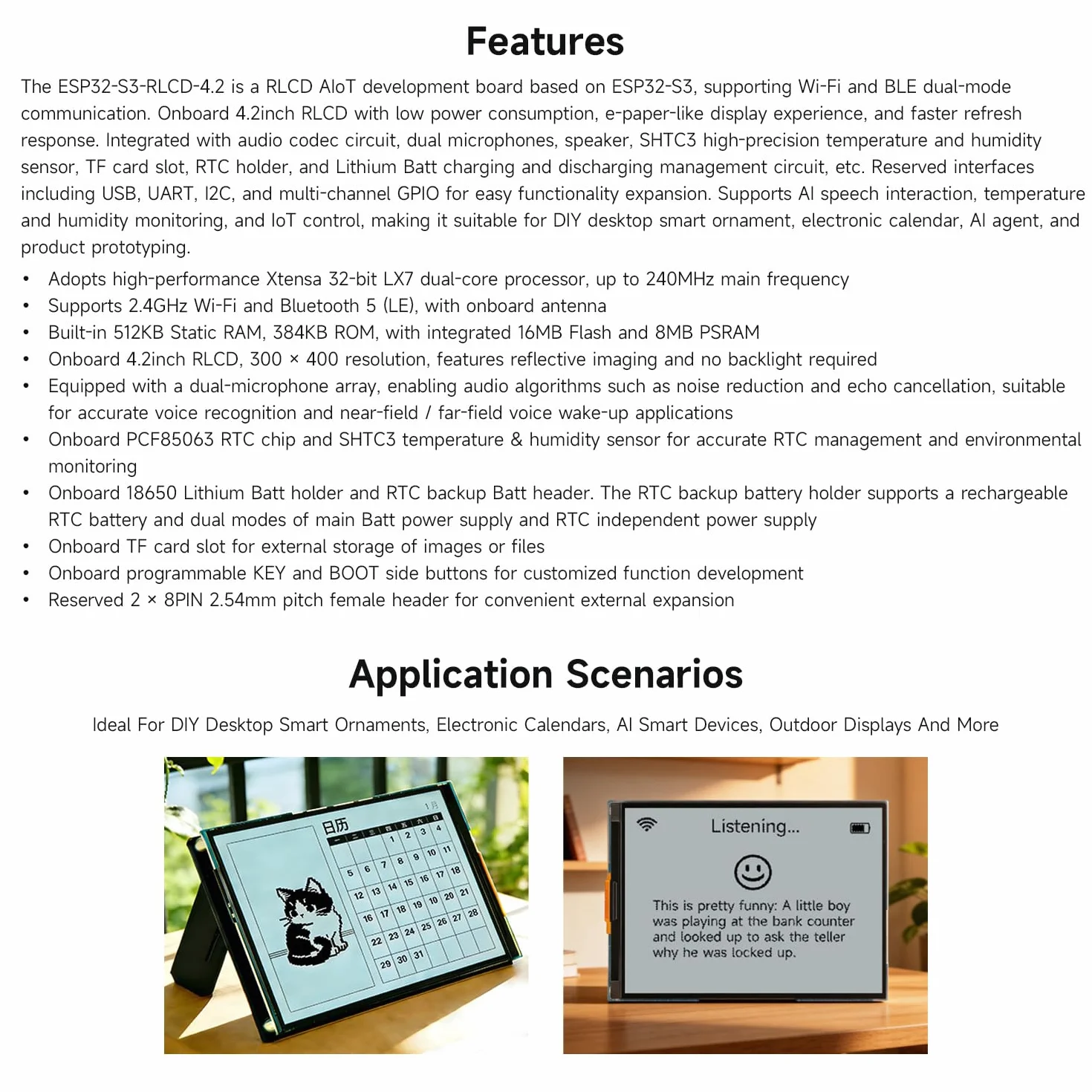

- The ESP32-S3-RLCD-4.2-EN(without Batt) is a RLCD AIoT development board based on ESP32-S3, supporting Wi-Fi and BLE dual-mode communication. Onboard 4.2inch RLCD with low power consumption, e-paper-like display experience, and faster refresh response. Integrated with audio codec circuit, dual microphones, speaker, SHTC3 high-precision temperature and humidity sensor, TF card slot, RTC header, and Li Batt charging and discharging management circuit, etc.

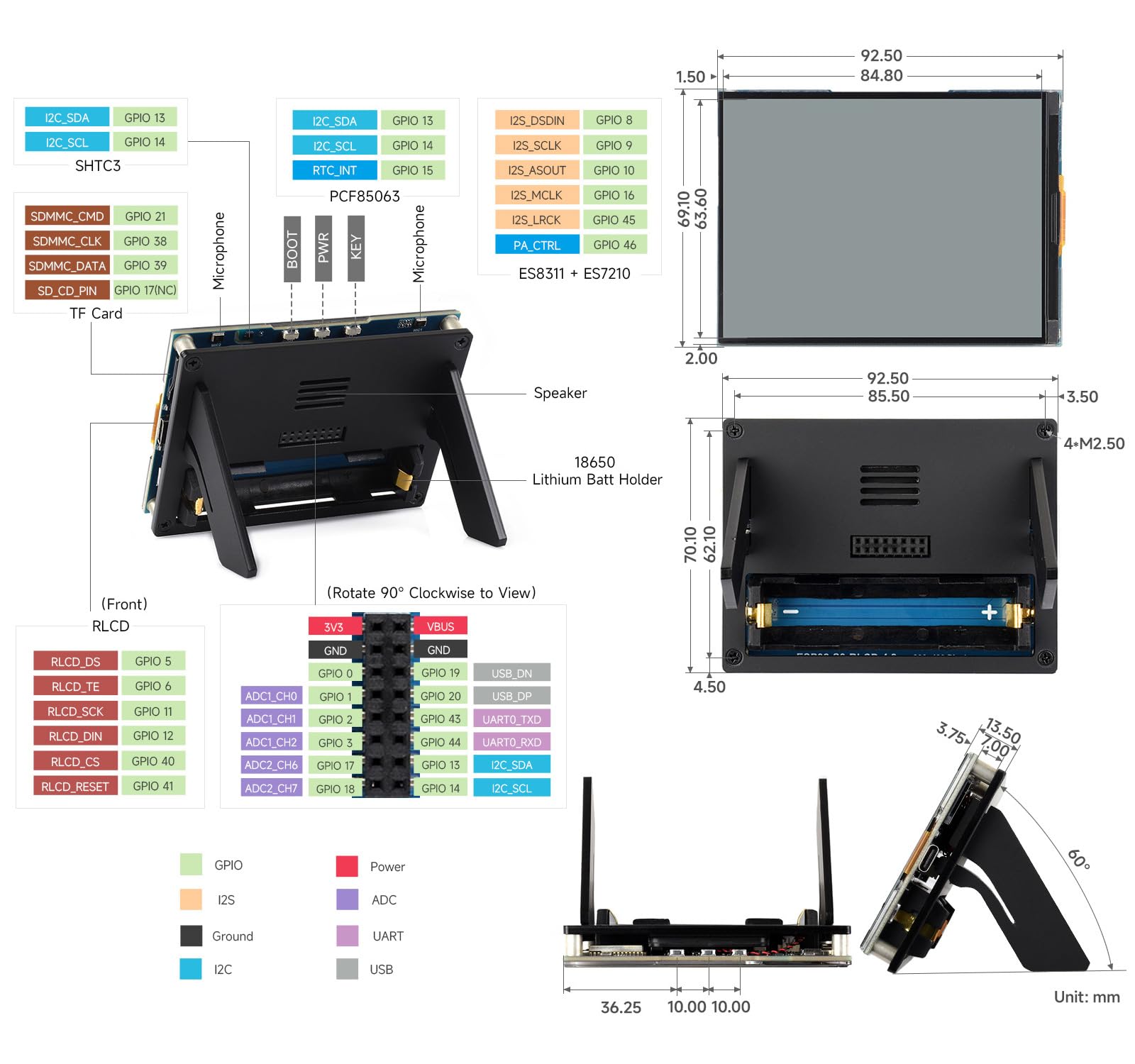

- Reserved USB, UART, I2C, and multiple GPIO interfaces for easy expansion. Supports AI Voice Interaction, temperature and humidity monitoring, and IoT control, making it suitable for DIY desktop smart ornaments, electronic calendars, AI smart devices, and other applications. Also ideal for product prototyping

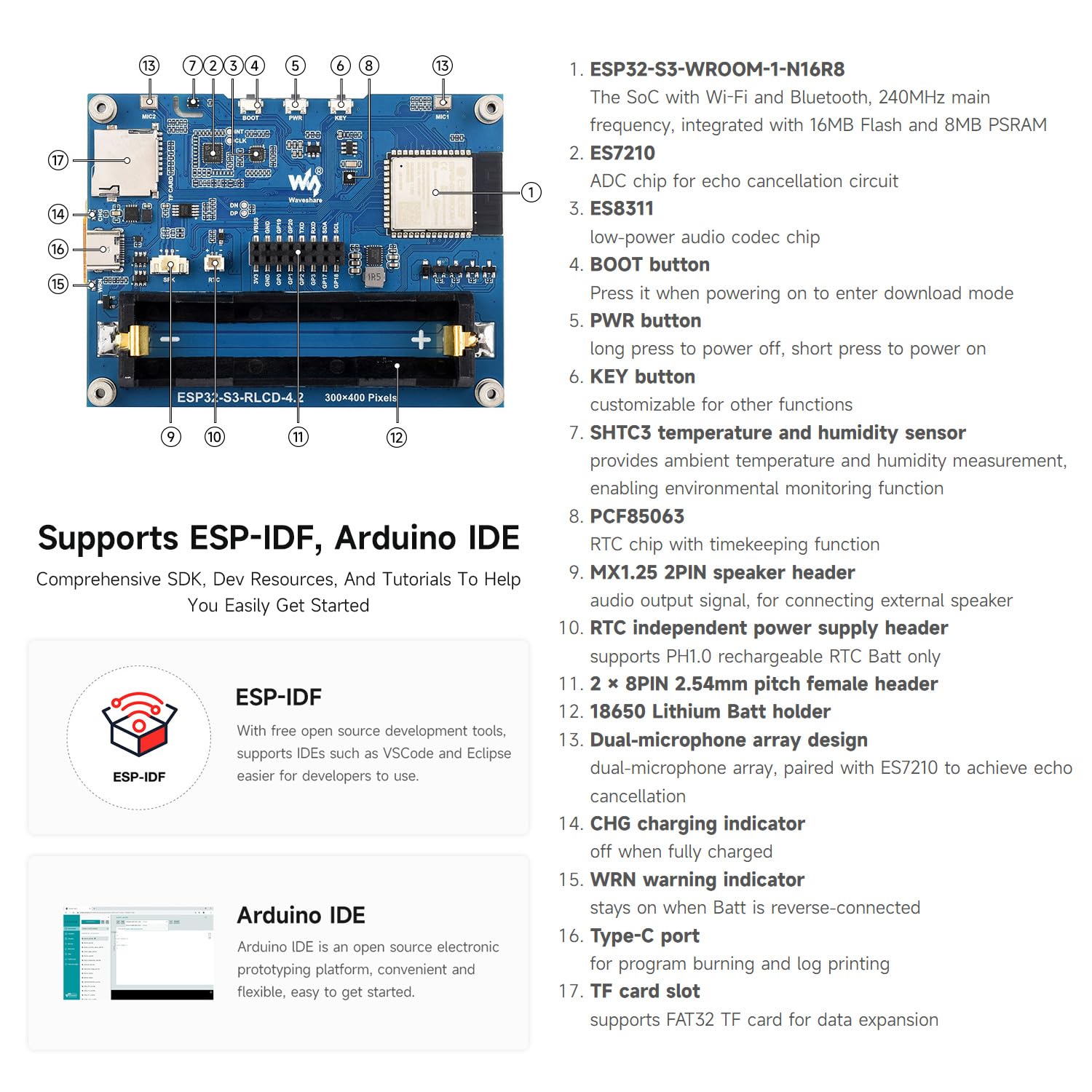

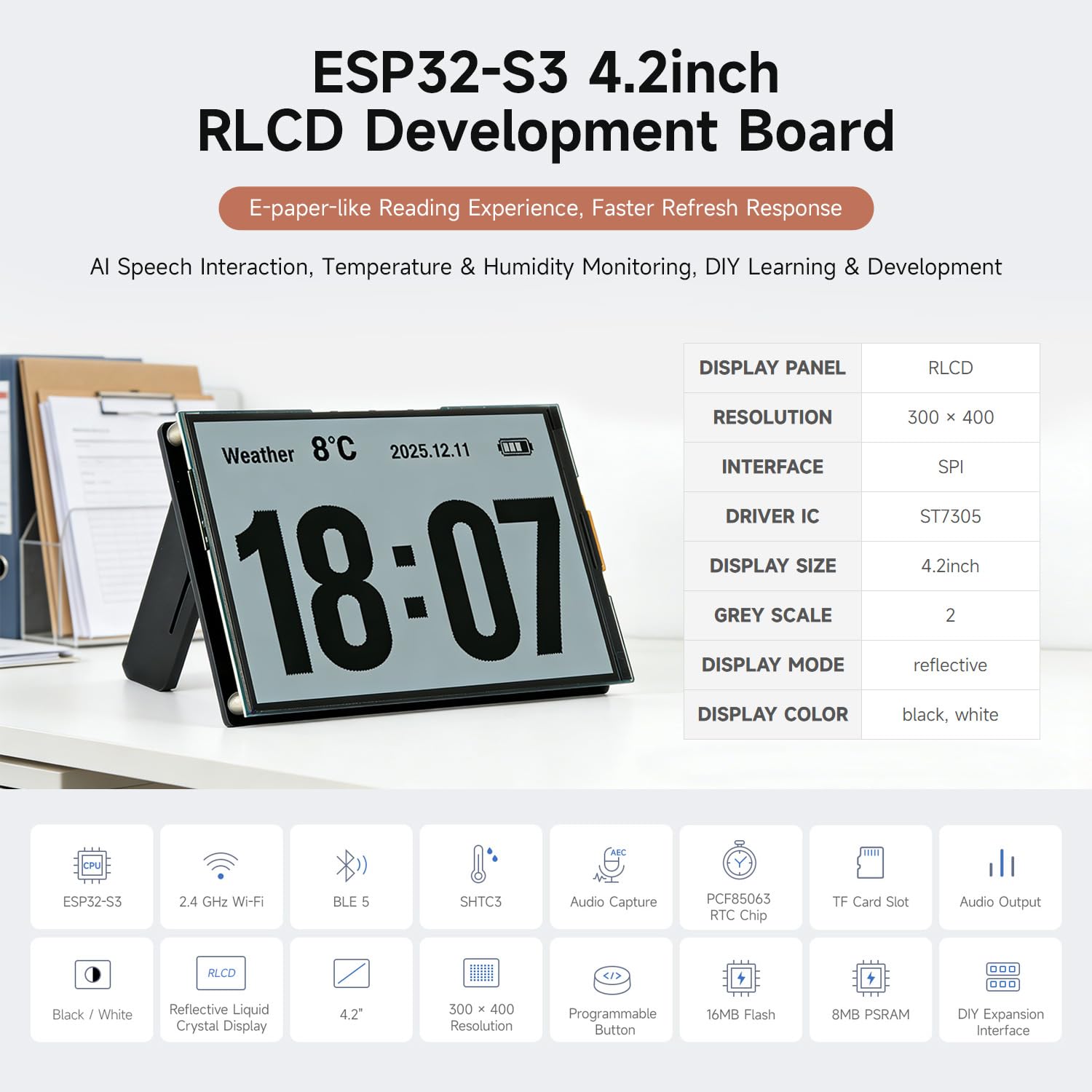

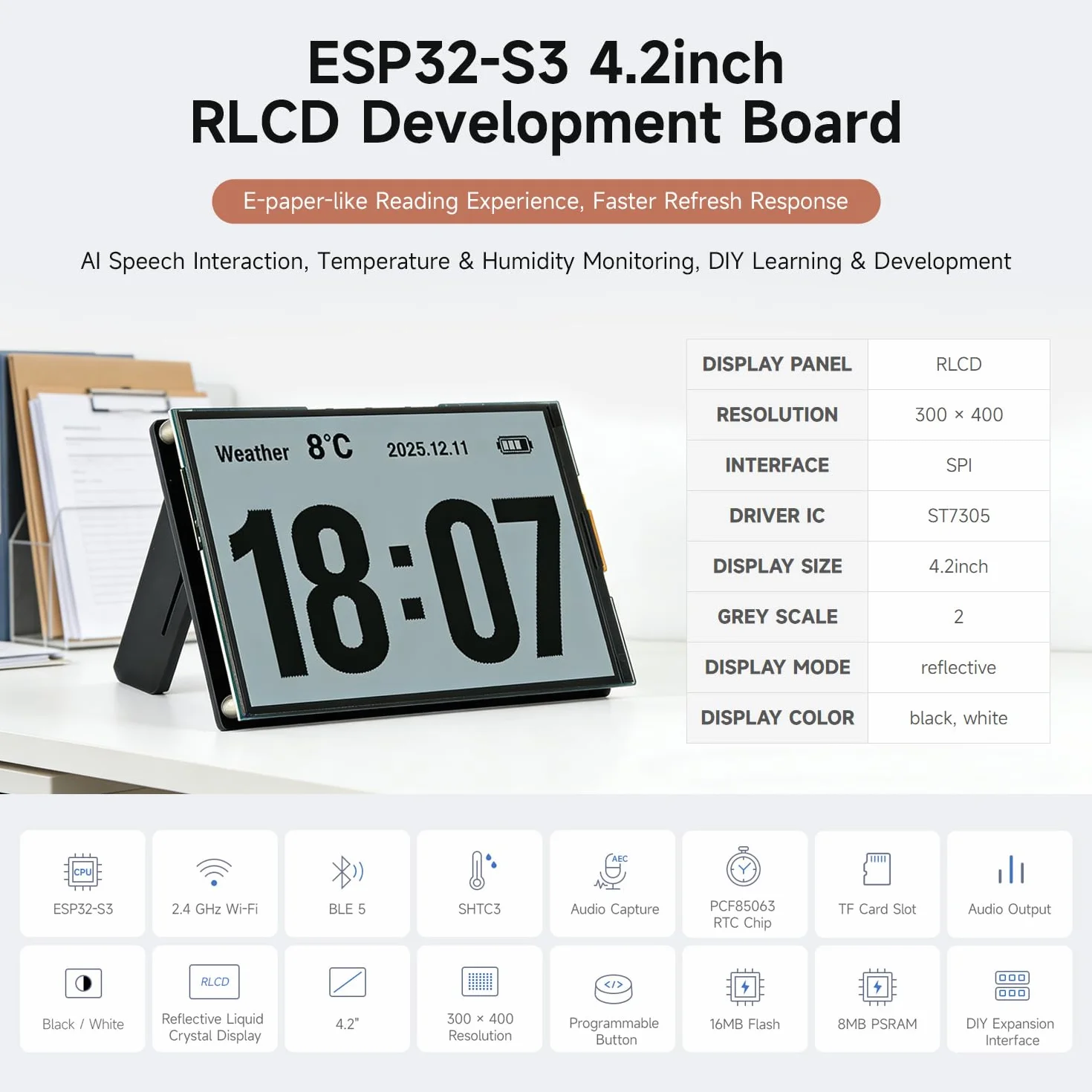

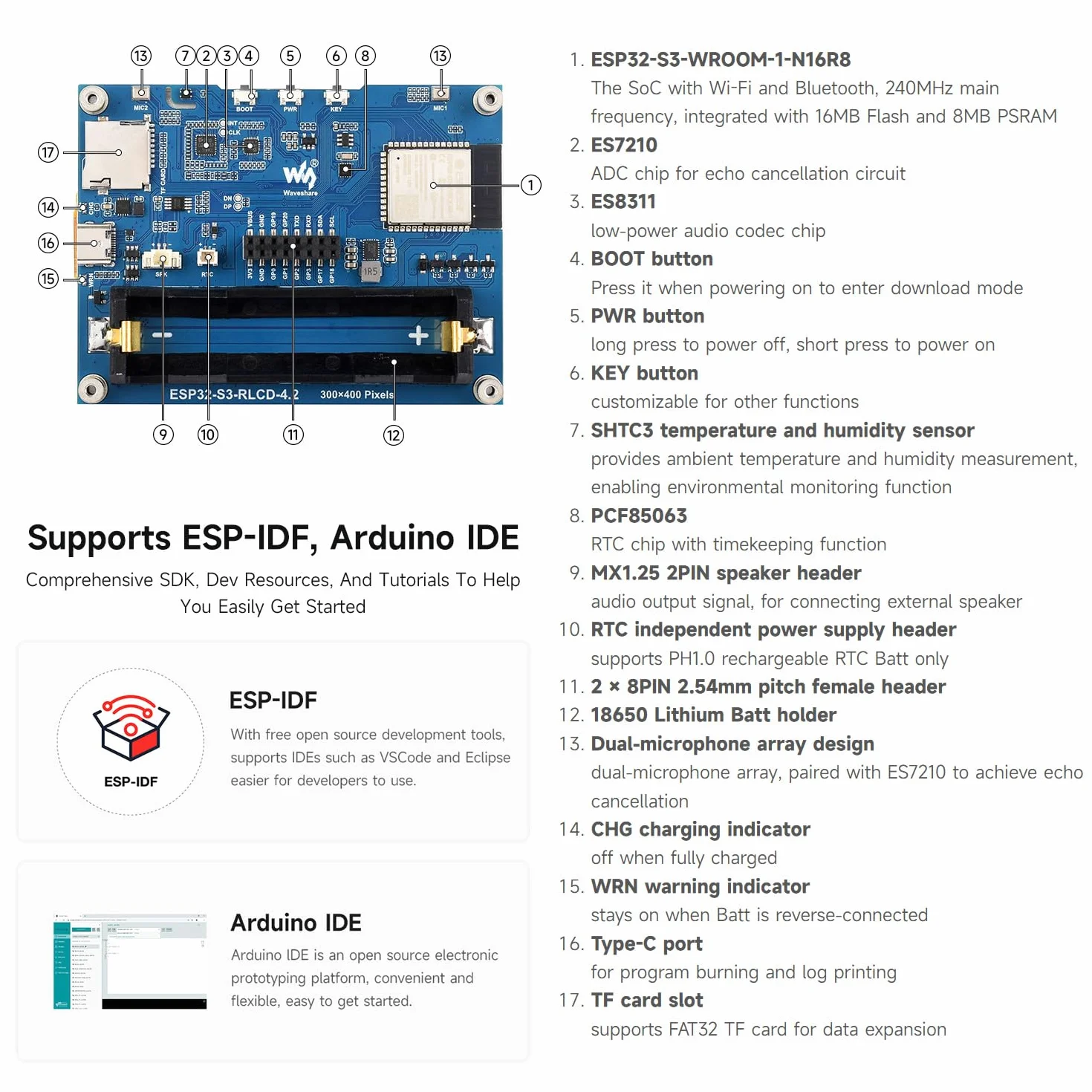

- Adopts high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi and BT 5 (LE), with onboard antenna. Built-in 512KB Static RAM, 384KB ROM, with integrated 16MB Flash and 8MB PStatic RAM. Onboard 4.2inch RLCD, 300x400 resolution, features reflective imaging and no backlight required

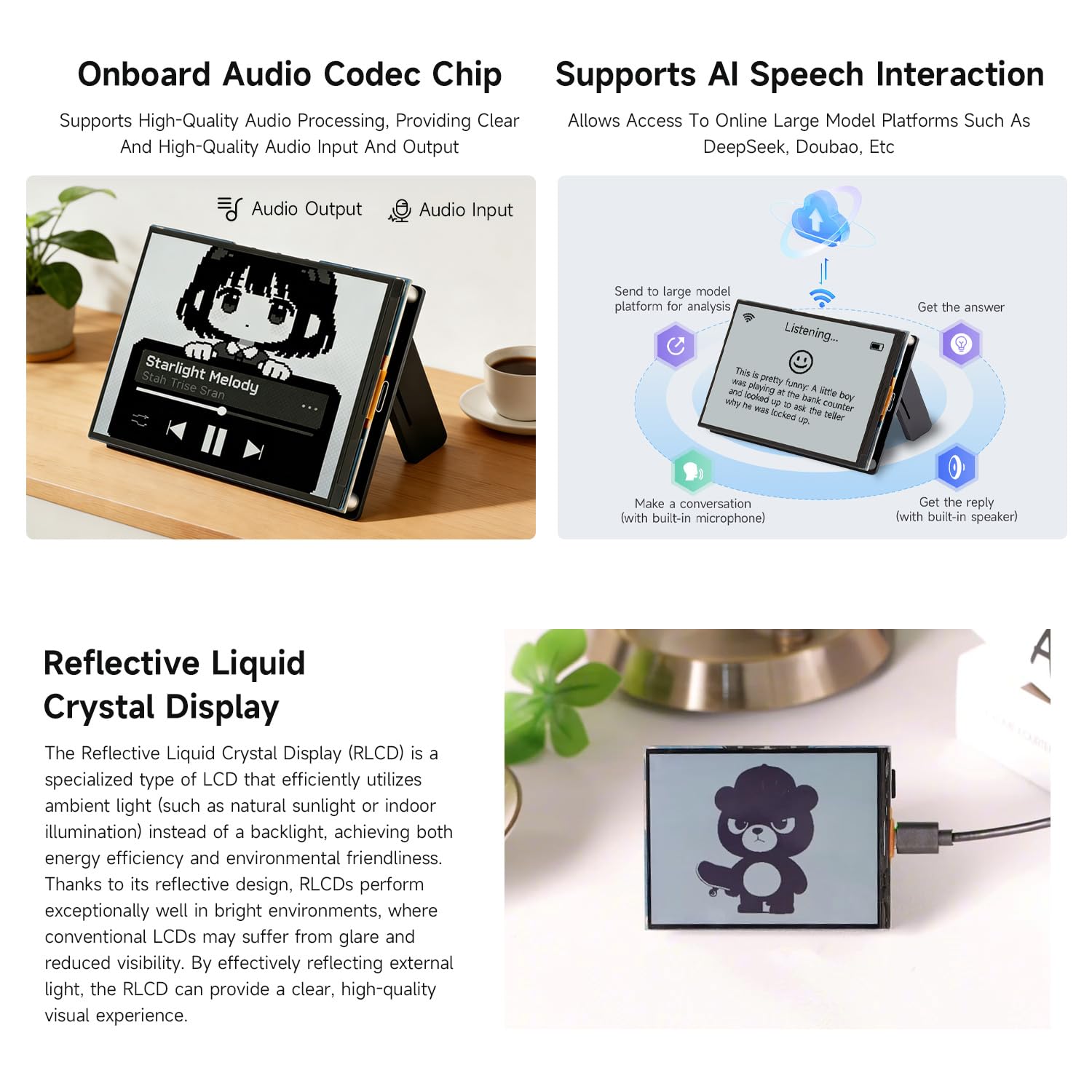

- Equipped with a dual-microphone array, enabling audio algorithms such as noise reduction and echo cancellation, suitable for accurate voice recognition and near-field / far-field voice wake-up applications. Onboard PCF85063 RTC chip and SHTC3 temperature & humidity sensor for accurate RTC management and environmental monitoring
- Onboard Li Batt holder and RTC backup Batt header. The RTC backup batt header supports a rechargeable RTC batt and dual modes of main Batt power supply and RTC independent power supply. Onboard TF card slot for external storage of images or files. Onboard programmable KEY and BOOT side buttons for customized function development. Reserved 2x8PIN 2.54mm pitch female header for convenient external expansion
